HO Scale Accessories

Locomotive PTC Antenna Arrays
P44702   BNSF - Type 1 $17.95
P44703   BNSF - Type 2 $17.95
P44704   CSX - Type 1 $17.95
P44705   CSX - Type 2 $17.95
P44706   Canadian National $17.95
P44707   Norfolk Southern $17.95
P44708   Union Pacific $17.95
F Unit Accessories
P44081   Passenger Pilot $4.95
P44086   F7A Unit Horizontal Grille $7.95
P44087   F7A Unit Farr (Vertical) Grille $7.95
P44586   F7B Unit Horizontal Grille $7.95
P44587   F7B Unit Farr (Vertical) Grille $7.95
Couplers - Black
40005   Black without Coupler Box $1.99 / 2 Pair
40006   Black without Coupler Box $9.25 / 10 Pair
40007   Black without Coupler Box $21.25 / 25 Pair
40016   Black with Coupler Box $10.50 / 10 Pair
Couplers - Rust
40025   Rust without Coupler Box $1.99 / 2 Pair
40026   Rust without Coupler Box $9.25 / 10 Pair
40027   Rust without Coupler Box $21.25 / 25 Pair
40035   Rust with Coupler Box $2.29 / 2 Pair
40036   Rust with Coupler Box $10.50 / 10 Pair
40037   Rust with Coupler Box $24.50 / 25 Pair
Nickel Silver Plated Brass Insulated Wheelsets
These wheels follow NMRA RP-25 Standards.
One wheel is insulated from the all-metal axle.
The entire wheelset is non-magnetic.
The axle length is approximately 1.006" (+- .004").

28" wheels are used on modern Tri-Level Autoracks, and some older intermodal cars - check your prototype.
33" wheels are used on 70 ton capacity cars (CAPY approximately 150,000 LBS).
36" wheels are used on 100 ton capacity cars (CAPY approximately 200,000 LBS).
38" wheels are used on 150 ton capacity cars, primarily the center connection trucks on modern intermodal cars with 36" wheels at the coupler ends.

The CAPY information is typically printed on model freight cars and can be used as a guide. Some cars have the wheel size printed on the sides or ends of the car in the data. If you are ever unsure of which size to use, you can simply replace the wheels currently on the car with the same size.

Wheel diameter can be measured with a caliper:
28" wheels measure (28/87.1=.321") in HO scale.
33" wheels measure (33/87.1=.378") in HO scale.
36" wheels measure (36/87.1=.413") in HO scale.
38" wheels measure (38/87.1=.436") in HO scale.
(87.1 = HO scale to prototype ratio. HO scale is 87.1 times smaller than the prototype).

40048 38" Wheels (.110" Tread Width)

12 Axles Per Pack

 $13.95
40049 38" Semi-Scale Wheels (.088" Tread Width)

12 Axles Per Pack

 $13.95
40050 33" Wheels (.110" Tread Width)

12 Axles Per Pack

 $13.95
40051 36" Wheels (.110" Tread Width)

12 Axles Per Pack

 $13.95
40052 33" Semi-Scale Wheels (.088" Tread Width)

12 Axles Per Pack

 $13.95
40053 28" Semi-Scale Wheels (.088" Tread Width)

12 Axles Per Pack

 $13.95
40054 36" Semi-Scale Wheels (.088" Tread Width)

12 Axles Per Pack

 $13.95
40055   33" Wheels - Bulk (.110" Tread Width)

100 Axles Per Box / 1200 Axles Per Case

 $.99 / Axle (100 Axle Box)
$.89 / Axle (1200 Axle Case)
40056   36" Wheels - Bulk (.110" Tread Width)

100 Axles Per Box / 1200 Axles Per Case

 $.99 / Axle (100 Axle Box)
$.89 / Axle (1200 Axle Case)
40058 33" Ball-Bearing Wheels
(Wheels rotate independent of axle points)
(.110" Tread Width)

6 Axles Per Pack

 $19.95
40059 36" Ball-Bearing Wheels
(Wheels rotate independent of axle points)
(.110" Tread Width)

6 Axles Per Pack

 $19.95
Trucks with Brass Wheelsets

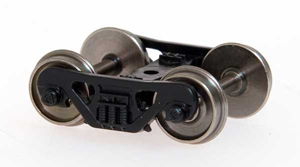

40060   Barber S-2 100 Ton Truck $7.95 / Pair

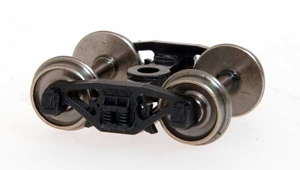

40061   ASF 50 Ton Truck $7.95 / Pair
40062   Bettendorf 50 Ton Truck $7.95 / Pair
40063   Barber 70 Ton Truck $7.95 / Pair
High Detail Nickel Plated Brass Insulated Wheelsets
The front and back profile of these wheels is more prototypically accurate.
These wheels follow NMRA RP-25 Standards.
One wheel is insulated from the all metal axle.
The entire wheelset is non-magnetic.
The axle length is approximately 1.006" (+- .004").
40070 33" Wheels (.110" Tread Width)

12 Axles Per Pack

 $17.95
40071 36" Wheels (.110" Tread Width)

12 Axles Per Pack

 $17.95
40072 33" Semi-Scale Wheels (.088" Tread Width)

12 Axles Per Pack

 $17.95
40073 36" Semi-Scale Wheels (.088" Tread Width)

12 Axles Per Pack

 $17.95
Centralia Car Shops Trucks
CCS4999   Lightweight Passenger Truck $19.95 / pair
Moon Dog Rail Cars Auto Rack Details
MVG001   Auto Rack Vandal Guards $12.99
MVG005   Auto Rack Pickup Silhouette - 2 Pack $9.99
REBOXX Tools
RX100   Exxact Socket Tool $9.95
REBOXX Weights
RX13001   For ACF Type 27 Riveted
10,000 Gallon Tank Car		 $3.95
RX13002   For ACF Type 27 Riveted
8,000 Gallon Tank Car		 $3.95
RX13007   For USRA Composite
Drop Bottom Gondola		 $3.95
RX13010   For ACF Center Flow 2-Bay Hopper $3.95
B & B Hobby Supplies
BBT0174   Fine Reamer Set (6 Pieces) $16.95
BBT0826   Micro Pin Vise & 20 Piece Drill Set $21.95
BBT1015   Precision Sprue Cutter $14.95
BBT1025   Precision Sprue Cutter (Fine) $14.95
BBT1405   12 Piece 5 Sided Reamer Set w/Pin Vise $29.95
BBT7381   Fine Diamond Needle File Set (10 Pieces) $18.95
